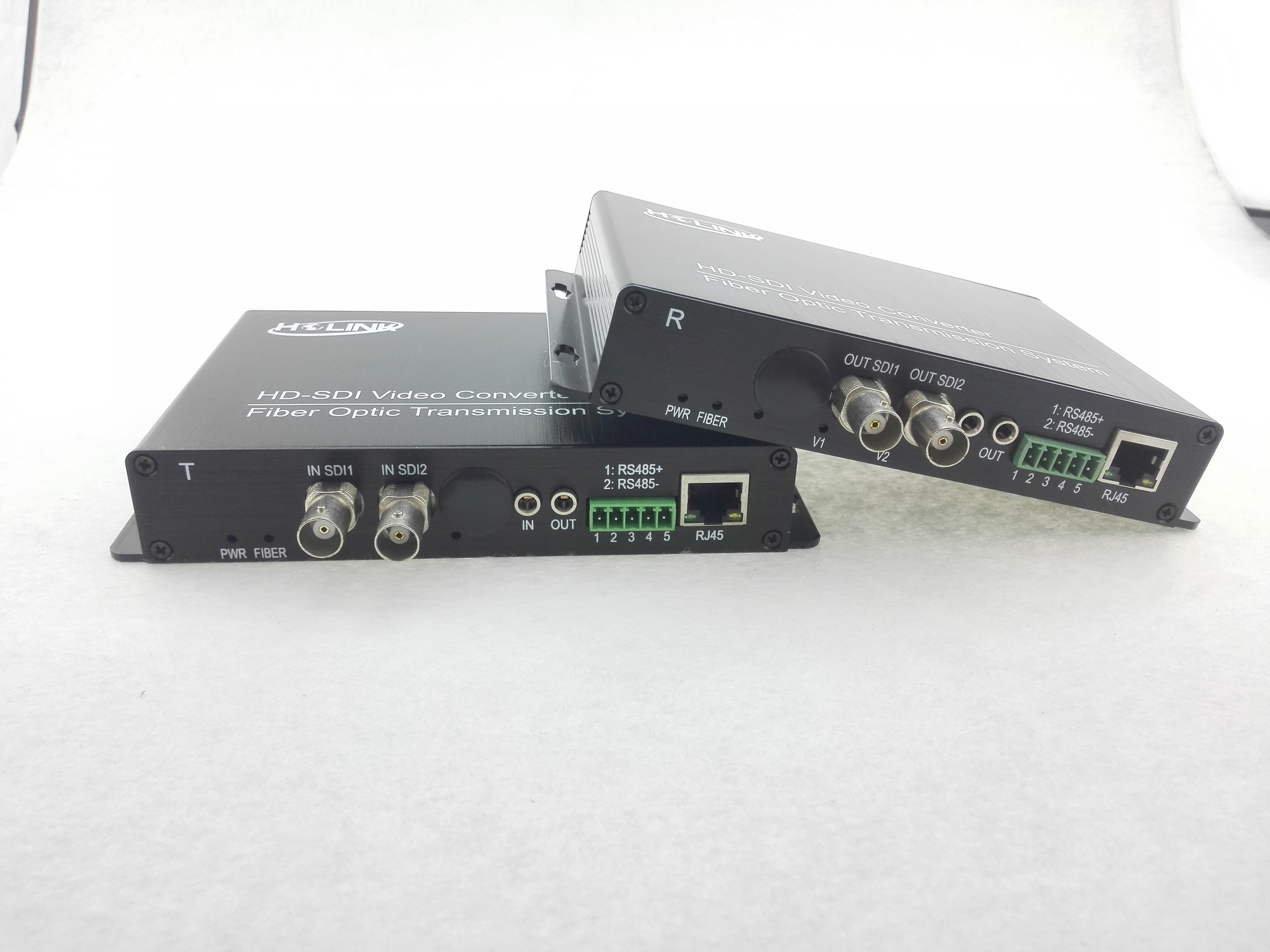

2Ch HD SDI To Fiber Converter HD-SDI Over Fiber Extender Transmitter+RS485 data +RJ45

  • 1
  • 2

Brand Name : Ho-link/OEM

Model Number : HL-1V-20T/R/HD-SDI

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1 Pair

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000pairs/month

Delivery Time : 3 working days after received your payment

Packaging Details : Neutral /Standard/Customized packing

Product Name : HD-SDI video to fiber converter

MTBF : 100,000hours

fiber : single fiber

Wave length : 1310nm/1550nm

optical connect : FC

Transmission distance : standard 10km

Contact Now

HD-SDI/SD SDI over fiber extender transmitter receiver,2 Ch HD-SDI video embeded with audio+1Ch Return 485/232/422 data


Overview:



    HO-link LNK-SDI Series SDI Video Digital Optical Converter is used in the television industry for highly reliable, high-performance serial digital optical transmission equipment, systems support SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, as well as DVB-ASI (EN50083-9), such as digital TV format standards to meet industry level product requirements.

2Ch HD SDI To Fiber Converter HD-SDI Over Fiber Extender Transmitter+RS485 data +RJ45




Features:




1.IEEE802.3u.100BASE-T and 100 BASE-FL

2.Full-Duplex/Half-Duplex,and it’s with Automatic negotiation function

3.MM connection transmission distance:2km

4.SM connection transmission distance:20/40/60/80/120km

5.Less fever,stable performance

6.Plug and play,can be on the rack

7.Complete LED status indication,used for Network diagnosis and fault inspection

8.automatic identification MD1/MD1-X Cross line and parallel lines

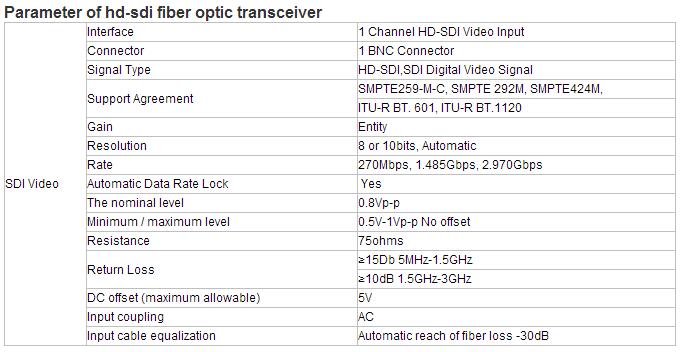

Technical Indexes



2Ch HD SDI To Fiber Converter HD-SDI Over Fiber Extender Transmitter+RS485 data +RJ45

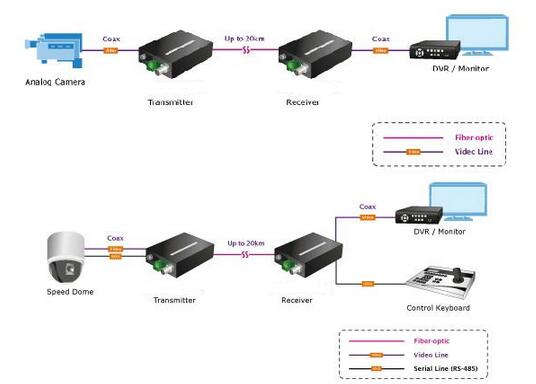

Application



• Intelligent Transportation System
• Connection of Sub-network for Surveillance Center
• Public Security Surveillance
• High way&Toll Station Surveillance
• High Quality Video Conference
• Industrial Closed Circuit Television Surveillance
• TV-live,audio,phone,ethernet,transmission





2Ch HD SDI To Fiber Converter HD-SDI Over Fiber Extender Transmitter+RS485 data +RJ45




Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03


Our professional sales team and technology support team will answer all your questions and make sure our products meet your requirements. Also we offer long time after-service.

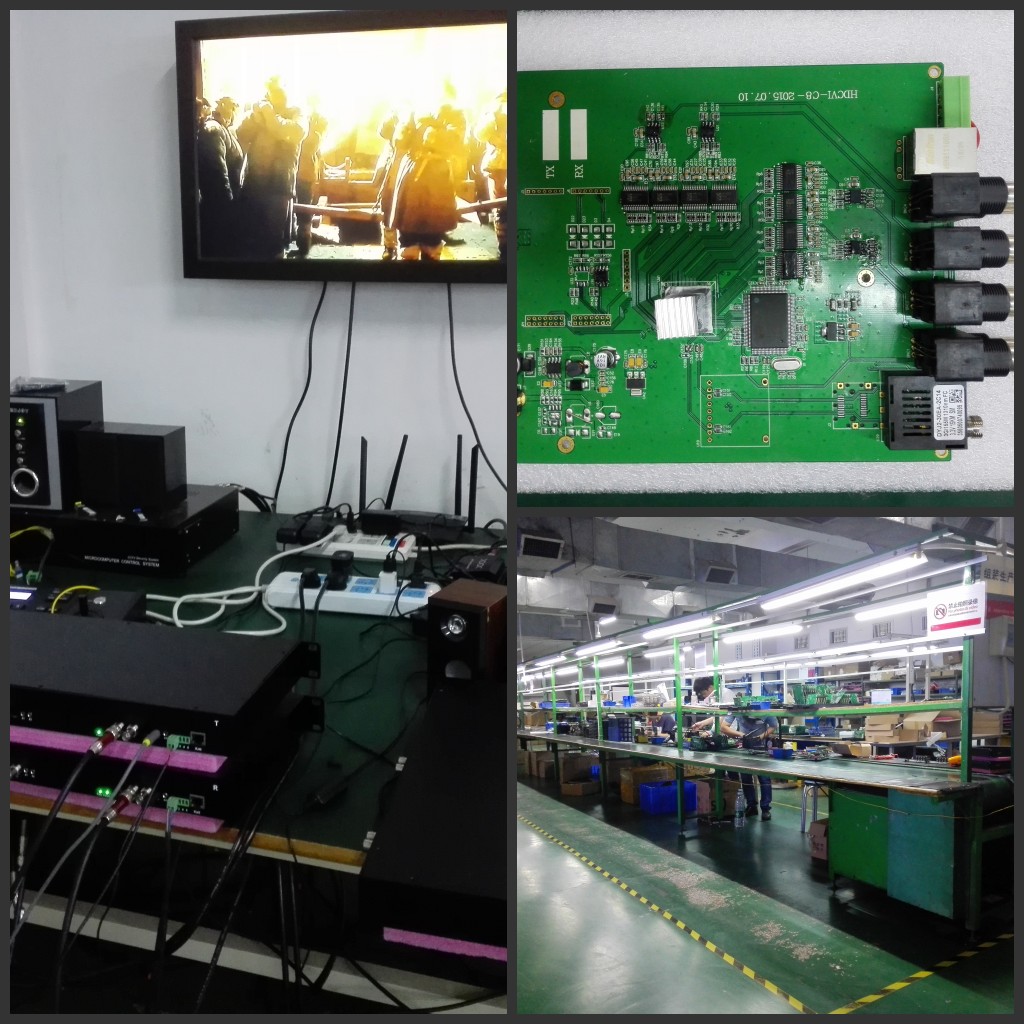

Company Profile


   Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

   Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.


2Ch HD SDI To Fiber Converter HD-SDI Over Fiber Extender Transmitter+RS485 data +RJ45
